Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

MMA Welder Type: P Bi-voltage 200~110/220V

Request a Quote

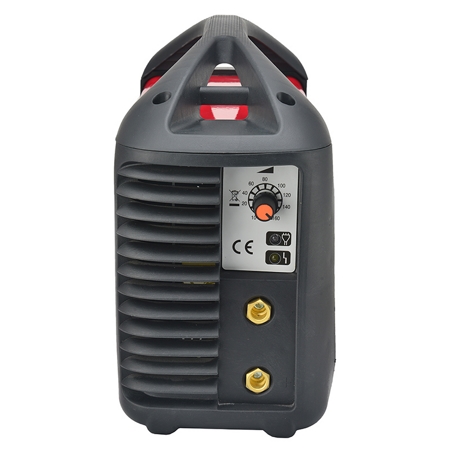

MMA Welder Type: P
Bi-voltage 200~110/220V

Advanced IGBT inverter technology: makes this welder more compact and energy saving, easy to operate and carry.
Dual-voltage 110/220V: equipped with dual voltage 110V/220V input power supply, which can automatically match the voltage.
Generator compatible: The MMA welder will be able to operate when powered by a generator.
Wide range of input voltages: single-phase 100-260V.
Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc and welding current.

Power Voltage	110/220V 1ph	Duty Cycle	60%
Input Voltage Frequency	50/60hz	Efficiency	85%
Input Current	42/30A	Welding Rod	Up to 4.0mm(5/32")
Rated Input Power	6.6KVA	Insulation Class	H
No-load Voltage	75V	Protection Class	IP21S
Output Voltage	26.4V	Cooling Type	Axial ventilation
Rated Output Current at 220V	10-160A	Weight	4.0 kg
Rated Output Current at 110V	10-120A	Dimension	311324 cm

Features

Advanced IGBT inverter technology
Makes this welder more compact and energy saving, easy to operate and carry.
Dual-voltage 110/220V
Equipped with dual voltage 110V/220V input power supply.
Generator compatible
The MMA welder will be able to operate when powered by a generator.
Wide range of input voltages
Single-phase 100-260V.
Hot start & anti-stick & built in arc force
Provides quick and easy arc starting, stable welding arc and welding current.
Premium welding performance
Support welding rods with a maximum diameter of 4.0mm (5/32"). Suitable for welding electrodes such as rutile, acidic, alkaline, stainless steel, cellulose, 7018, 6010, 6011, 6013, etc. Good performance on welding low carbon steel, carbon steel, alloy steel, stainless steel, and some non-ferrous metals.
Built to last
The axial fan increases the heat dissipation of power devices, greatly extending the service life.
DC lift TIG capacity
Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.

Applications

SONSCN is dedicated to providing various welding machines for different industries, whether it is complex industrial environments or special applications.

Welding equipment for minor construction projects
Home decoration industry welding machine
Welding equipment for farm and ranch
Portable welder for repairs and home DIY

Standard Accessories

Electrode holder with cable
Earth clamp with cable

Optional Accessories

Plastic tool box
Welding mask
Wire brush
Adapter

Quality Inspection

We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.

FAQs

The insulation class of this model is H, which means that the heat resistance level of the insulation material used in the welder is rated H, allowing for a working temperature of 180 ℃. This is a very high insulation class.

This welder comes with dual voltage 110V/220 input power and can automatically switch.

This welder can use welding rods with a diameter of up to 4.0mm (5/32 inches).

The protection class of this model is IP21S, which meets international standards.

SONSCN is a professional manufacturer of welding equipment with a complete welding machine production line. We provide production and customization service of welding equipment.

Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please click here to view.

Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.

If you have any questions about our welders, please email us or give us a call.
