| Power Voltage | ~110/220V 1ph | Duty Cycle | 60% |
| Input Voltage Frequency | 50/60HZ | Efficiency | 85% |
| Input Current | 42/30A | Welding Rod | Up to 4.0mm(5/32") |
| Rated Input Power | 6.6KVA | Insulation Class | H |
| No-load Voltage | 75V | Protection Class | IP21S |
| Output Voltage | 26.4V | Cooling Type | Axial ventilation |
| Rated Output Current at 220V | 10-160A | Weight | 4.0kg |
| Rated Output Current at 110V | 10-120A | Dimension | 28*12.5*19cm |

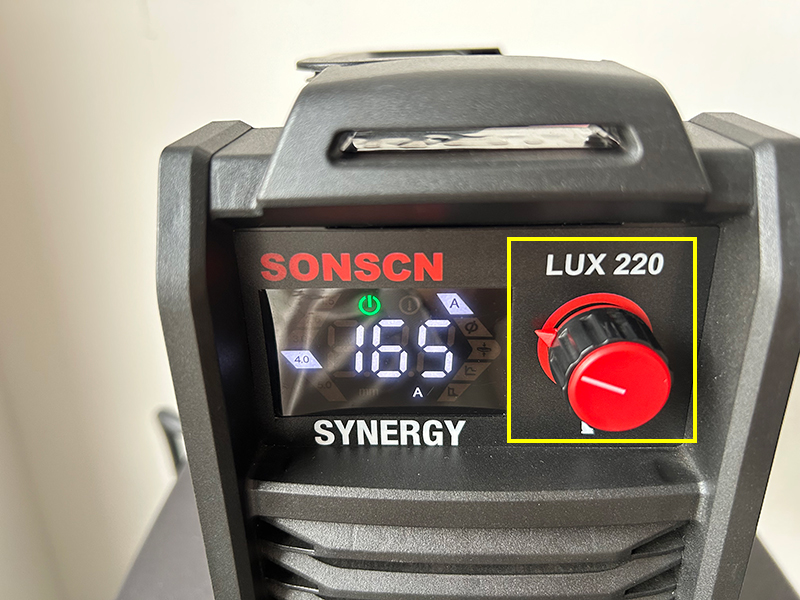

current adjustment knob

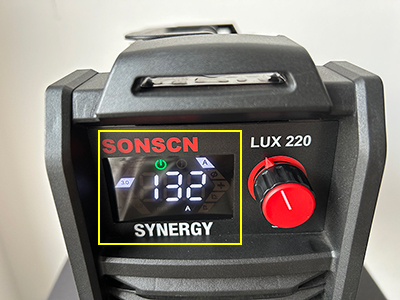

digital display
“—” earth clamp connector
Makes this welder more compact and energy saving, easy to operate and carry.
Equipped with dual voltage 110V/220V input power supply.
The MMA welder will be able to operate when powered by a generator.
Single-phase 100-260V.
Provides quick and easy arc starting, stable welding arc and welding current.
Support welding rods with a maximum diameter of 4.0mm (5/32"). Suitable for welding electrodes such as rutile, acidic, alkaline, stainless steel, cellulose, 7018, 6010, 6011, 6013, etc. Good performance on welding low carbon steel, carbon steel, alloy steel, stainless steel, and some non-ferrous metals.
The axial fan increases the heat dissipation of power devices, greatly extending the service life.
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.
SONSCN is dedicated to providing various welding machines for different industries, whether it is complex industrial environments or special applications.
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
Inverter welding equipment manufacturer
Yongkang Songshi Technology Co., Ltd. is established in 2002 and located in Yongkang, Zhejiang Province.
Focus on inverter welder manufacturing since 2002
