| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 5.5KVA | 10-120A | 60% | 1.5-3.2mm(1/8") | 2.8kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.1KVA | 10-140A | 60% | 1.5-3.2mm(1/8") | 3.0kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm(5/32") | 3.6kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 8.2KVA | 10-180A | 60% | 1.5-5.0mm(3/16") | 4.0kg | 31*13*21cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 4.5kg | 31*13*21cm |

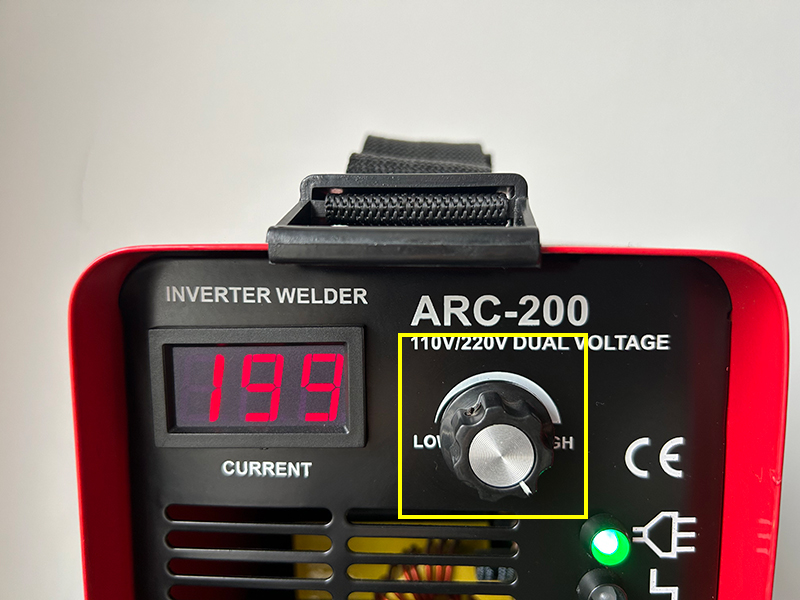

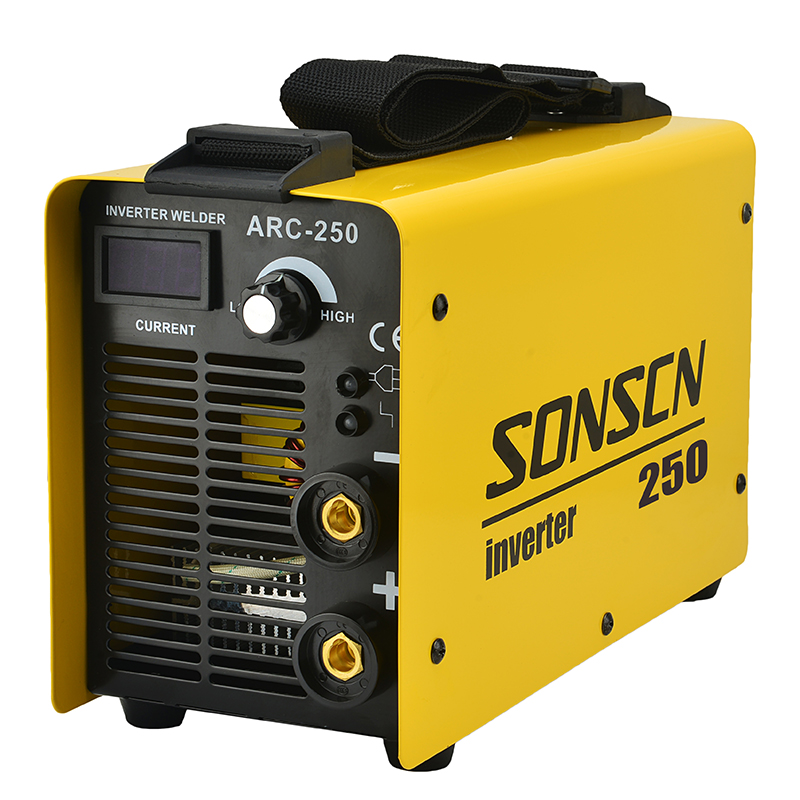

current adjustment knob

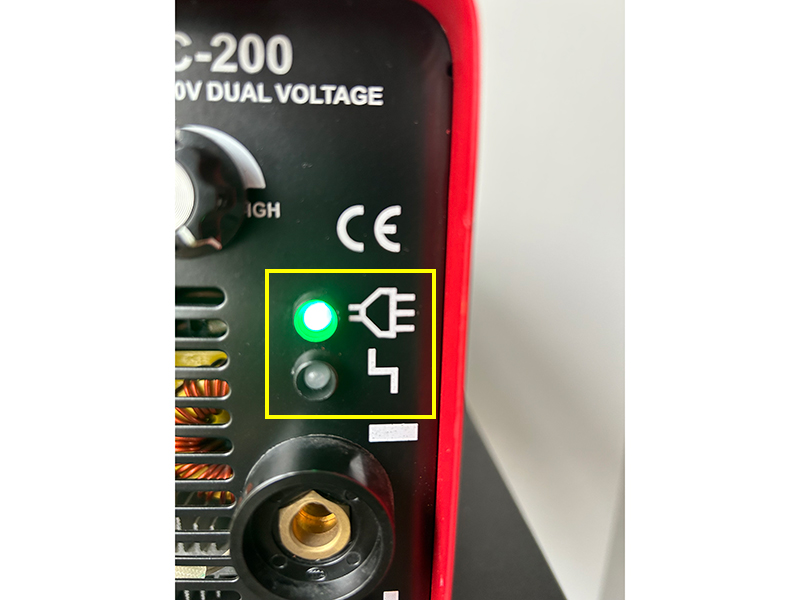

working indicator light (green color)

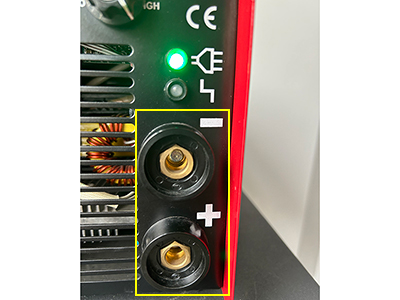

“—” earth clamp connector

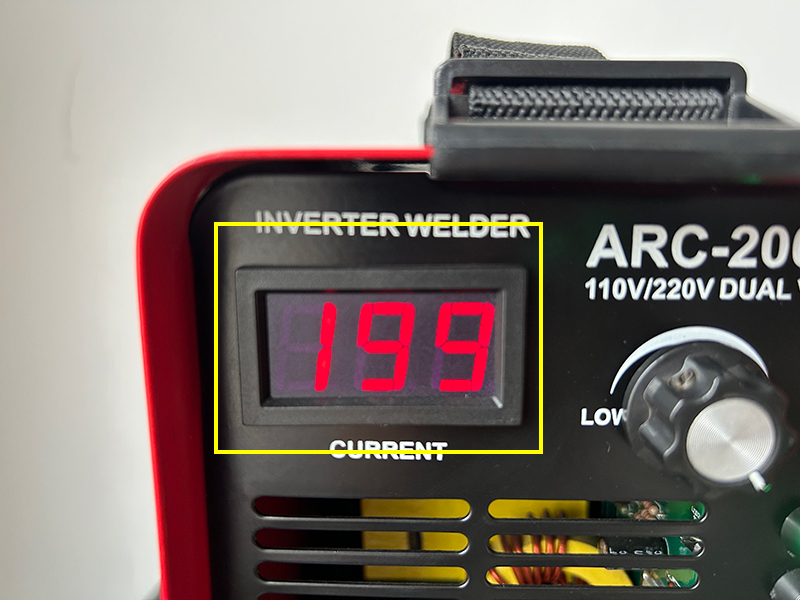

digital display
Provides stable performance, reliability and high consistency.
This welder is easy to operate and carry.
155-265V (1ph) 50/60HZ.
The MMA welder type T will be able to operate when powered by a generator.
Support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on cellulose electrode E6010, E6011.
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.
Come with 28*11*17.5cm or 31*13*21cm.
SONSCN is dedicated to providing various welding machines for different industries, whether it is complex industrial environments or special applications.
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
Inverter welding equipment manufacturer
Yongkang Songshi Technology Co., Ltd. is established in 2002 and located in Yongkang, Zhejiang Province.
Focus on inverter welder manufacturing since 2002
