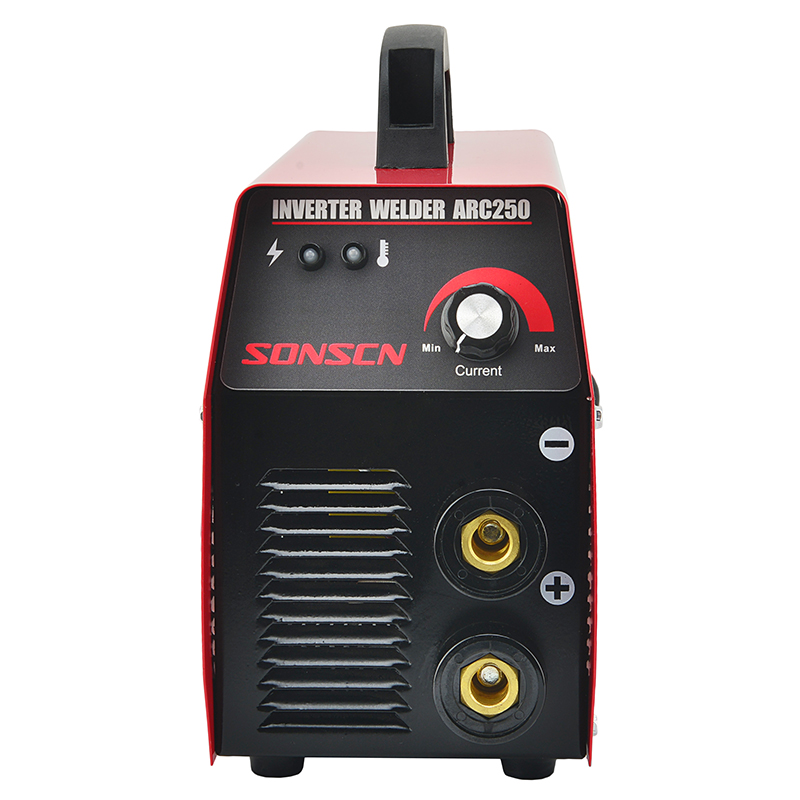

MMA Welder Type: HD

Advanced IGBT inverter & PWM control: provides stable performance, reliability and high consistency.
Portable & lightweight: this welder is easy to operate and carry.
Wide range of input voltages & automatic balancing during voltage fluctuations
Generator compatible: The MMA welder type HD will be able to operate when powered by a generator.
Premium welding performance: The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.

Model	Power Voltage	No-load Voltage	Efficiency	Rated Input Power	Output Current Range	Duty Cycle	Electrode Diameter	Weight	Dimension
ARC120HD	230V土10% 50/60hz(1ph)	80V	85%	5.5KVA	10-120A	60%	1.5-3.2mm (1/8")	3.8kg	281220cm
ARC140HD	230V土10% 50/60hz(1ph)	80V	85%	6.1KVA	10-140A	60%	1.5-3.2mm (1/8")	4.0kg	281220cm
ARC160HD	230V土10% 50/60hz(1ph)	80V	85%	6.9KVA	10-160A	60%	1.5-4.0mm (5/32")	4.2kg	281220cm
ARC180HD	230V土10% 50/60hz(1ph)	80V	85%	8.2KVA	10-180A	60%	1.5-5.0mm(3/16")	5kg	391728cm
ARC200HD	230V土10% 50/60hz(1ph)	80V	85%	9.6KVA	10-200A	60%	1.5-5.0mm(3/16")	5.5kg	391728cm

Features

Advanced IGBT inverter & PWM control
Provides stable performance, reliability and high consistency.
Portable & lightweight
This welder is easy to operate and carry.
Wide range of input voltages & automatic balancing during voltage fluctuations
Generator compatible
The MMA welder type HD will be able to operate when powered by a generator.
Premium welding performance
The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.
Hot start &anti-stick
Provides very easy, quick and reliable arc starts, stable arc, little splash, low noise.

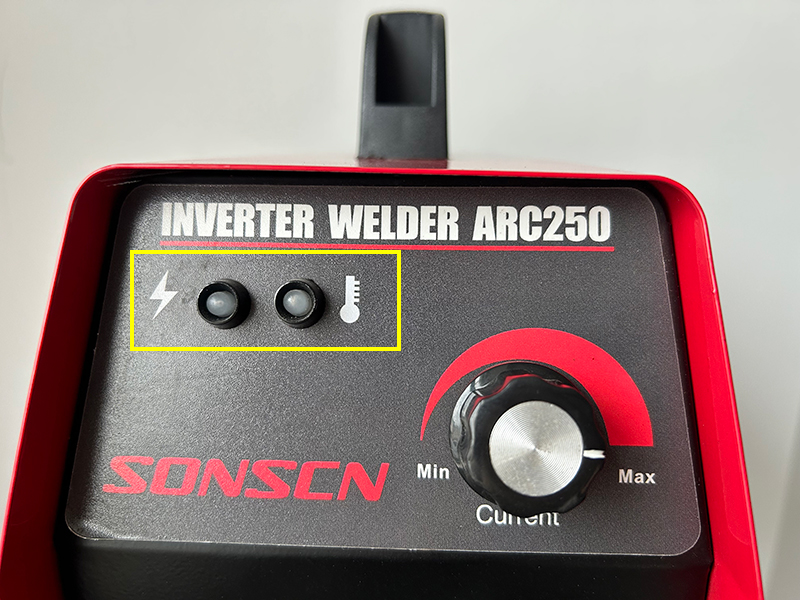

Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
Weldable materials
Rutile, alkaline, stainless steel, and cast iron.

Applications

SONSCN is dedicated to providing various welding machines for different industries, whether it is complex industrial environments or special applications.

The welding of various materials, like steel, stainless steel, cast iron and their alloys.
Welding Equipment for minor construction projects
Home decoration industry welding machine
Welding Equipment for Farm and Ranch
Portable Welder for Repairs and Home DIY

Standard Accessories

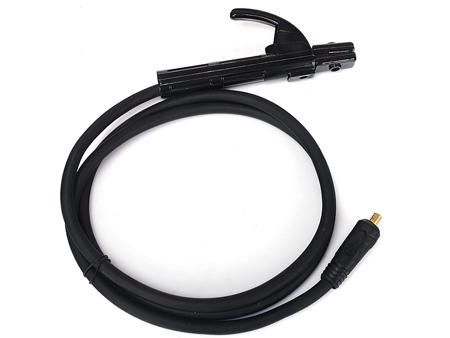

Electrode holder with cable

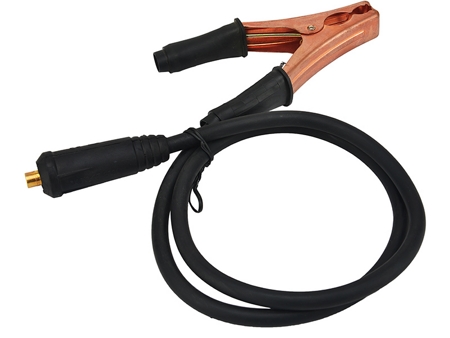

Earth clamp with cable

Optional Accessories

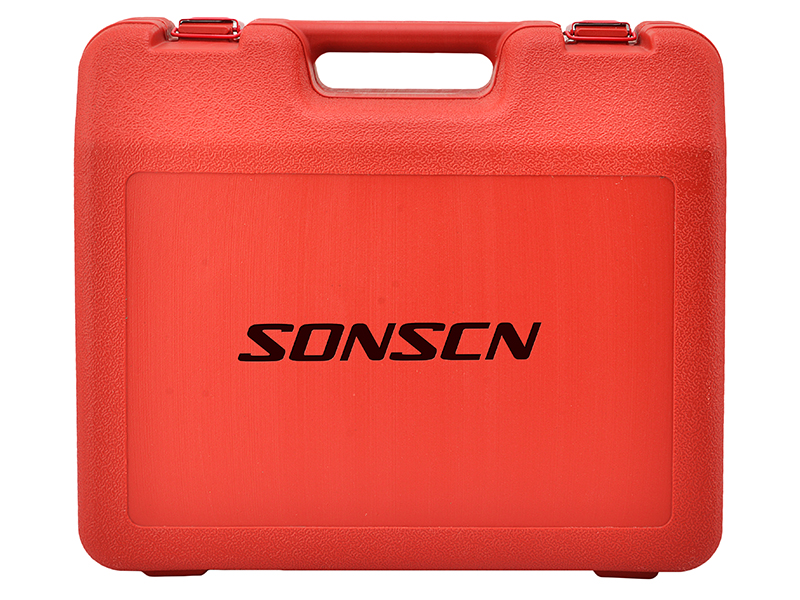

Plastic tool box

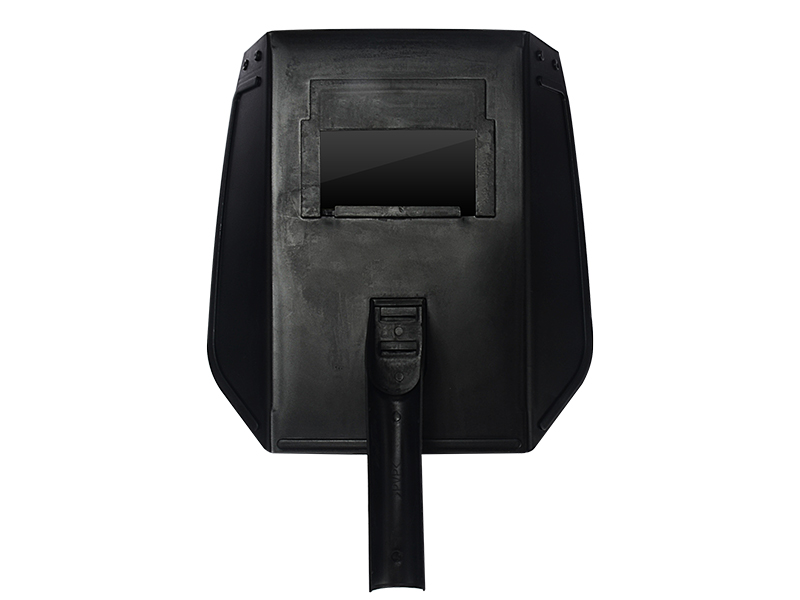

Welding mask

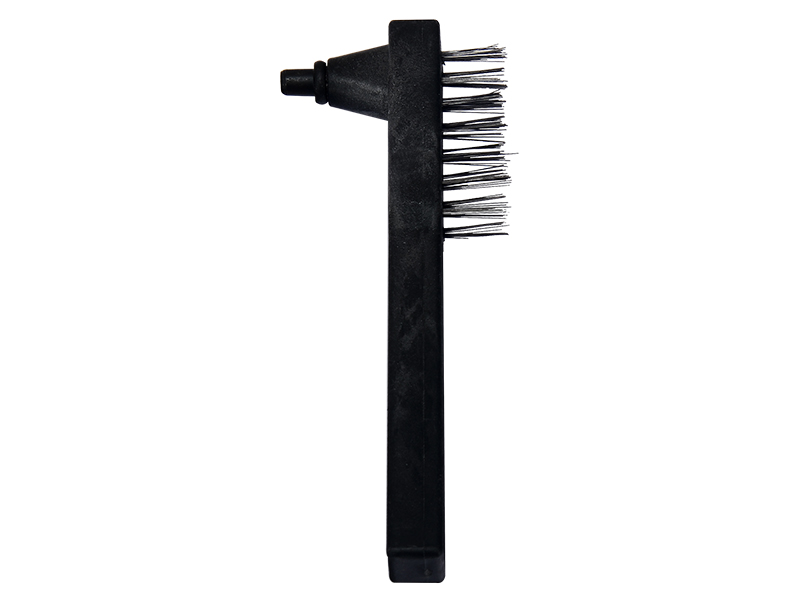

Wire brush

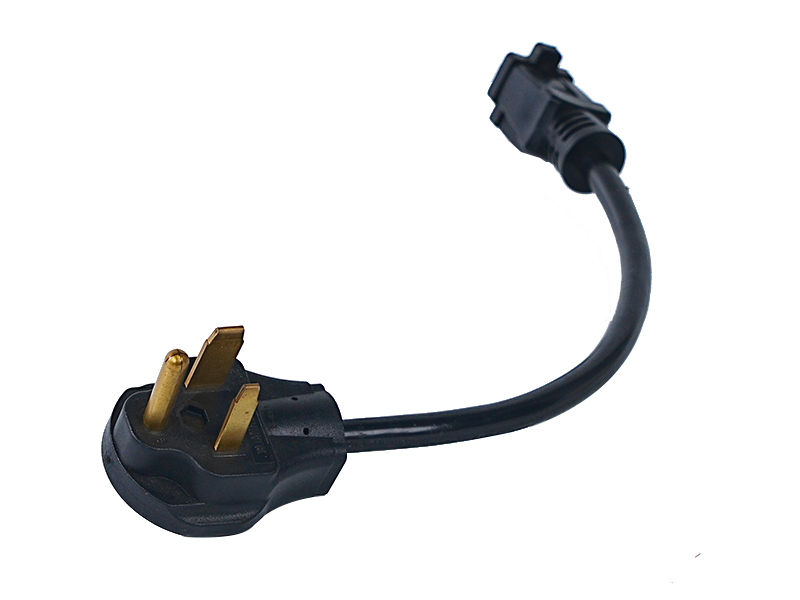

Adapter

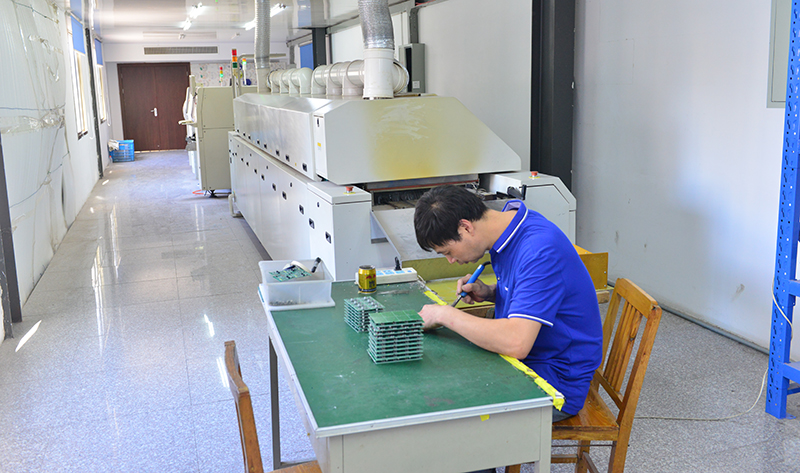

Quality Inspection

We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.

FAQs

MMA Welder Type HD utilizes advanced IGBT inverter technology and PWM control technology, making the welder compact, lightweight, and portable, and more energy efficient.

Yes, MMA Welder Type HD has an automatic protection function that activates in case of overheating, overcurrent, and overload situations.

SONSCN has become a professional welding equipment manufacturer with over 20 years of production experience. We not only provide welding machines but also offer related welding equipment accessories.

Yes, our welding machine has obtained multiple patented technologies and international CE certification. For more information, please click here to view.

Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.

If you have any questions about our welders, please email us or give us a call.
