MMA Welder Type MINI | MMA Welder Producer

Request a Quote

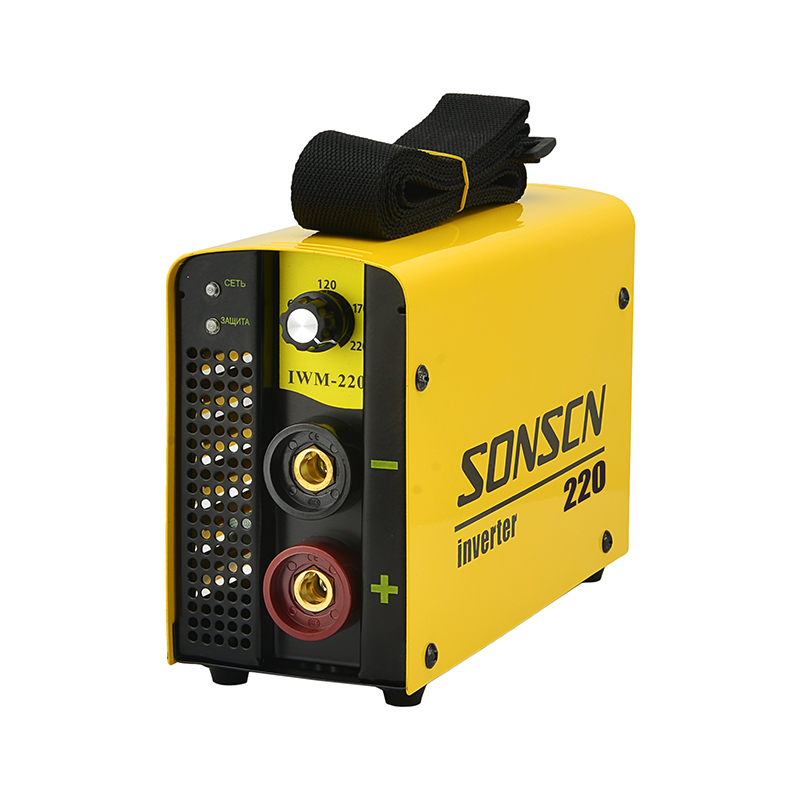

MMA Welder Type: MINI

ARC120mini/ARC140mini/ARC160mini

Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
Portable & lightweight: this welder is easy to operate and carry.
Wide range of input voltages: 155-265V (1ph) 50/60HZ.
Generator compatible: The MMA welder type mini will be able to operate when powered by a generator.

Model	Power Voltage	No-load Voltage	Efficiency	Rated Input Power	Output Current Range	Duty Cycle	Electrode Diameter	Weight	Dimension
ARC120mini	230V± 10% 50/60Hz (1ph)	75V	85%	5.5kVA	10-120A	60%	1.5-3.2mm (1/8")	2.5kg	22915cm
ARC140mini	230V± 10% 50/60hz (1ph)	75V	85%	6.1 kVA	10-140A	60%	1.5-3.2mm (1/8")	2.8kg	22915cm
ARC160mini	230V±10% 50/60hz (1ph)	75V	85%	6.9 kVA	10-160A	60%	1.5-4.0mm (5/32")	3.2kg	22915cm

Features

Advanced IGBT inverter &MCU digital control
Provides stable performance, reliability and high consistency.
Portable & lightweight
This welder is easy to operate and carry.
Wide range of input voltages
155-265V (1ph) 50/60HZ.
Generator compatible
The MMA welder type mini will be able to operate when powered by a generator.
Premium welding performance
Support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder is suitable for welding workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.
Hot start
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
Anti-stick
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
Built-in arc force
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.
Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
Lift TIG capabilities
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.

Standard Accessories

Electrode holder with cable
Earth clamp with cable

Optional Accessories

Plastic tool box
Welding mask
Wire brush
Adapter

Quality Inspection

We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.

FAQs

A: Manual metal arc (MMA) welding is one of the most flexible and widely used arc welding processes, with the following advantages:

Extremely good flexibility: MMA welding is suitable for indoor and outdoor welding, as well as flat welding or vertical surface welding.
Low welding cost.
Weldable materials include stainless steel, mild steel, carbon steel and non-ferrous metals, etc

SONSCN is a professional manufacturer of welding equipment with a complete welding machine production line. We provide production and customization service of welding equipment.

SONSCN has become a professional welding equipment manufacturer with over 20 years of production experience. We not only provide welding machines but also offer related welding equipment accessories.

MMA Welder Type MINI can handle welding materials with a diameter of 3.2mm or 4.0mm, and can process workpieces with a minimum thickness of 0.8mm.
