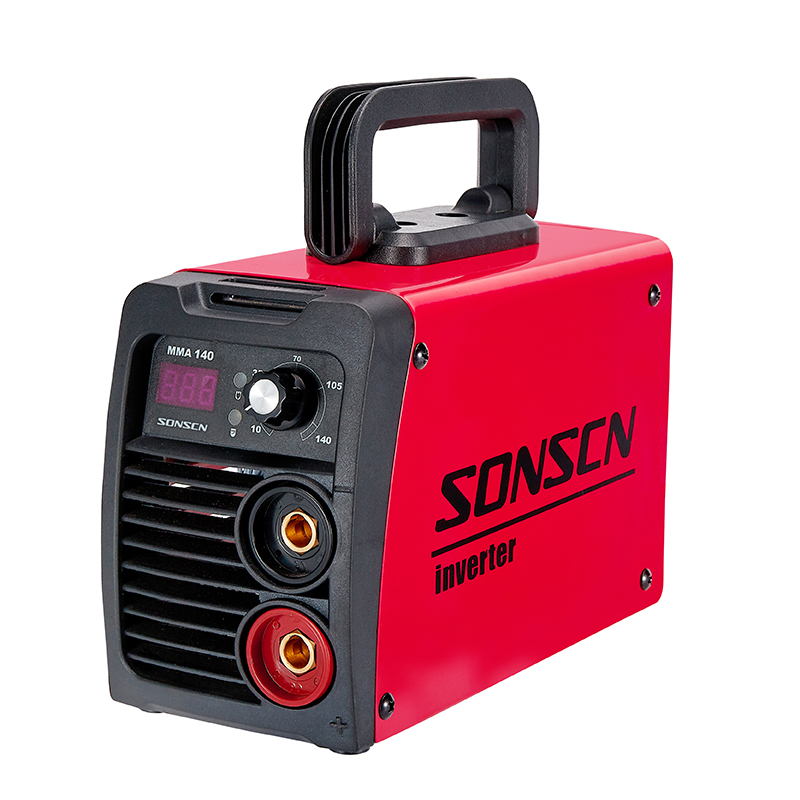

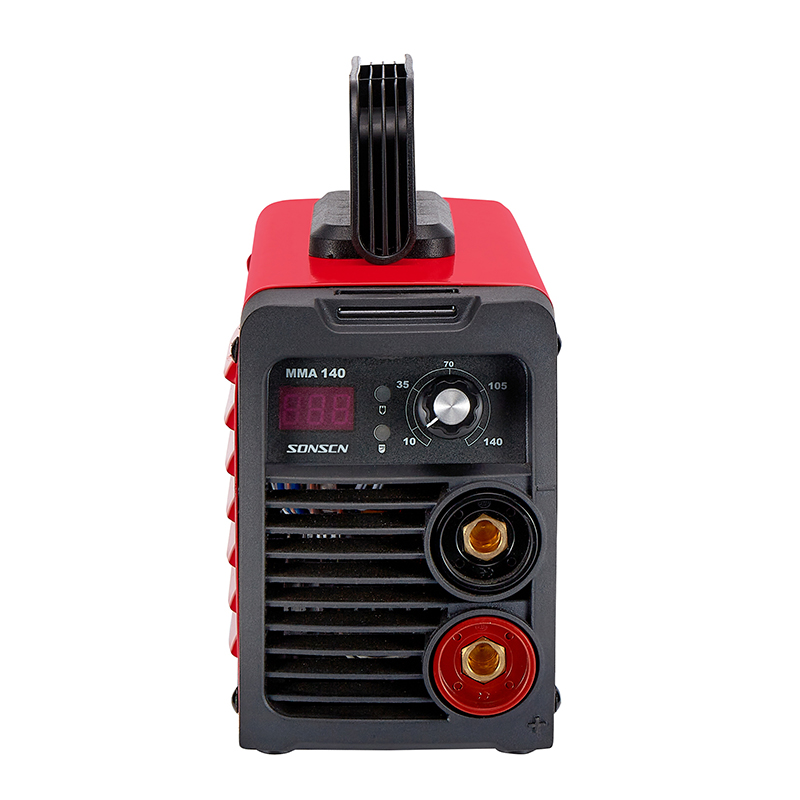

MMA Welder Type: SD

Request a Quote

Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
Portable & lightweight: this welder is easy to operate and carry.
Wide range of input voltages: 155-265V (1ph) 50/60HZ.
Generator compatible: The MMA welder type SD will be able to operate when powered by a generator.
Premium welding performance: support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.

Model	Power Voltage	No-load Voltage	Efficiency	Rated Input Power	Output Current Range	Duty Cycle	Electrode Diameter	Weight	Dimension
ARC140SD	230V土10% 50/60hz(1ph)	75V	85%	5.5KVA	10-120A	60%	1.5-3.2mm(1/8")	3.2kg	231014.5cm
ARC160SD	230V土10% 50/60hz(1ph)	75V	85%	6.1KVA	10-140A	60%	1.5-3.2mm(1/8")	3.4kg	231014.5cm
ARC180SD	230V土10% 50/60hz(1ph)	75V	85%	6.9KVA	10-160A	60%	1.5-4.0mm(5/32")	3.8kg	231014.5cm
ARC200SD	230V土10% 50/60hz(1ph)	75V	85%	8.2KVA	10-180A	60%	1.5-4.0mm(5/32")	4.2kg	2511.518cm

Features

Advanced IGBT inverter &MCU digital control
provides stable performance, reliability and high consistency.
Portable & lightweight
This welder is easy to operate and carry.
Wide range of input voltages
155-265V (1ph) 50/60HZ.
Generator compatible
The MMA welder type SD will be able to operate when powered by a generator.
Premium welding performance
Support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.
Hot start
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
Anti-stick
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
Built-in arc force
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.
Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
Lift TIG capabilities
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.

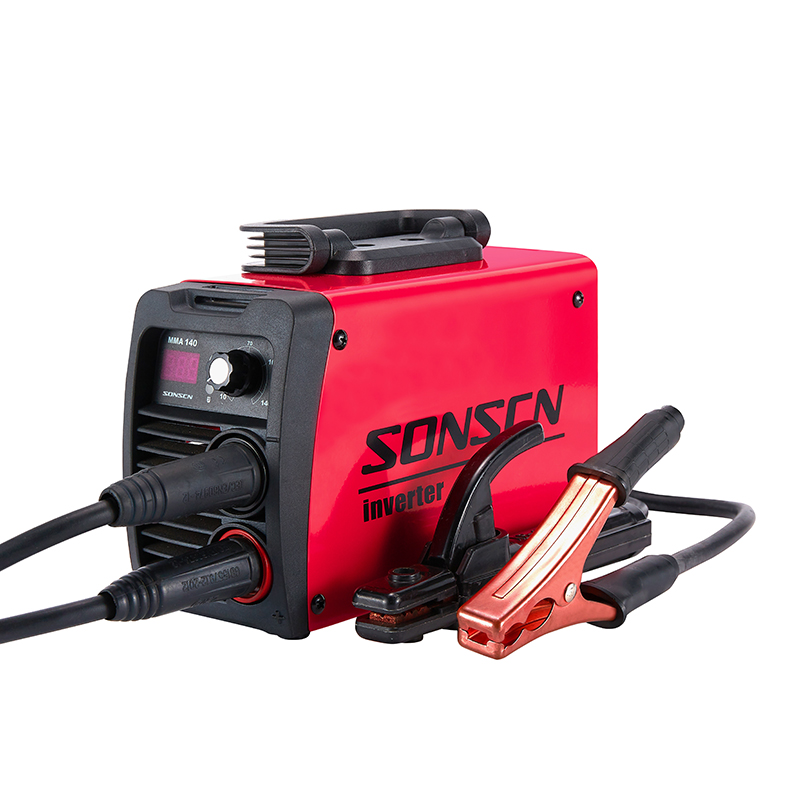

Standard Accessories

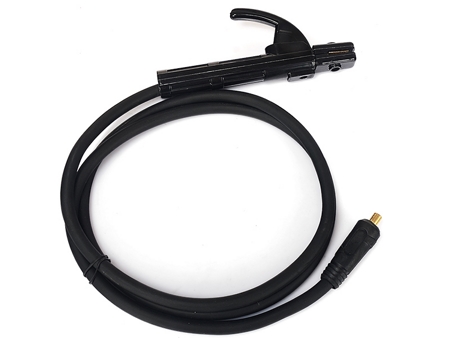

Electrode holder with cable

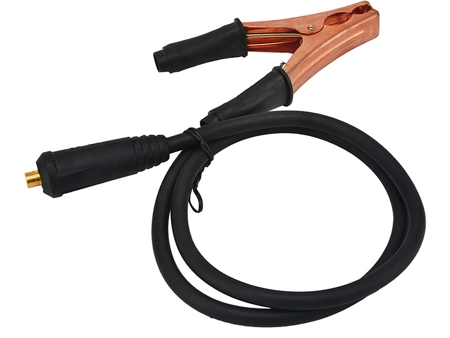

Earth clamp with cable

Optional Accessories

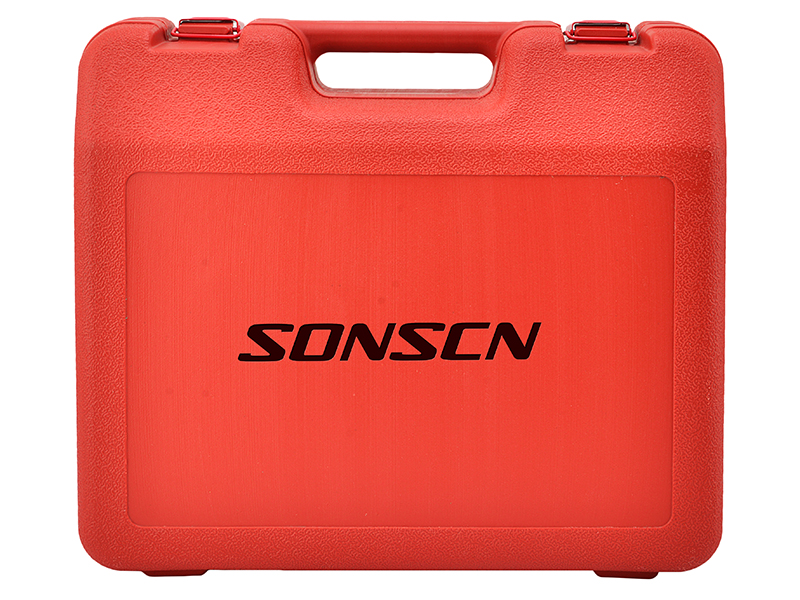

Plastic tool box

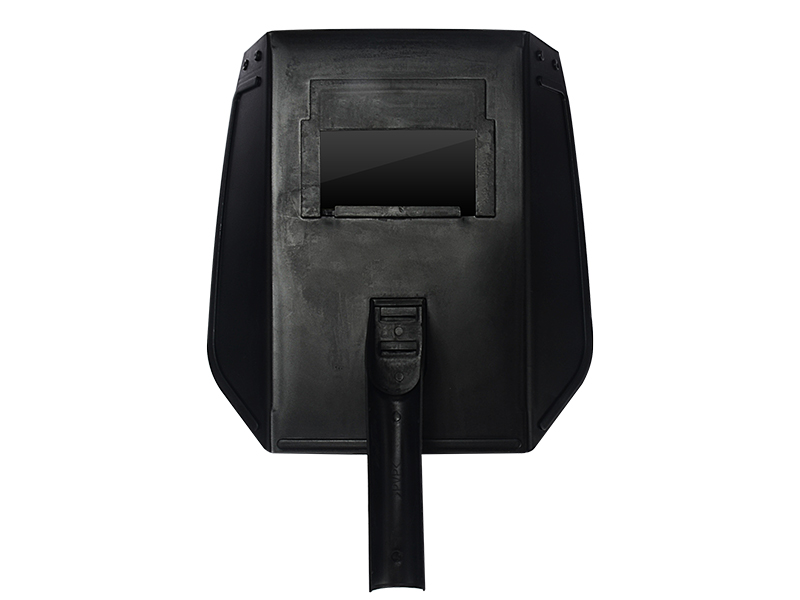

Welding mask

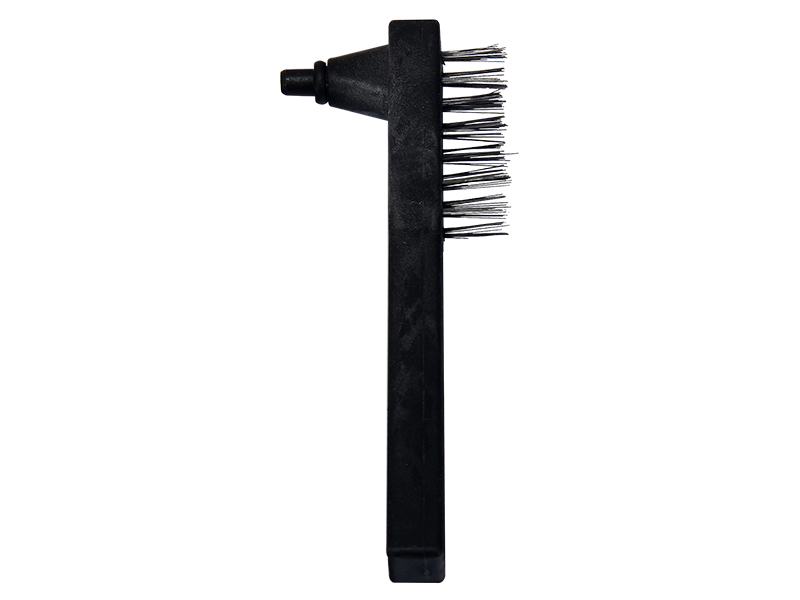

Wire brush

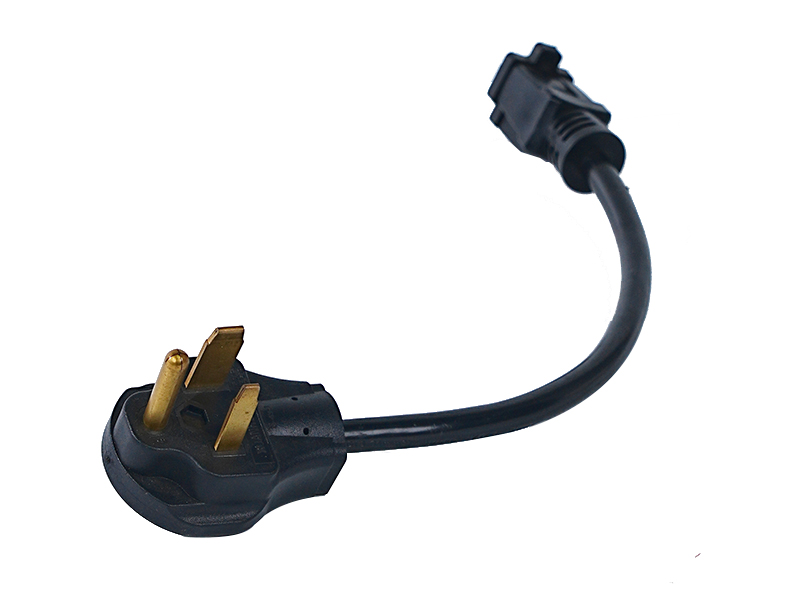

Adapter

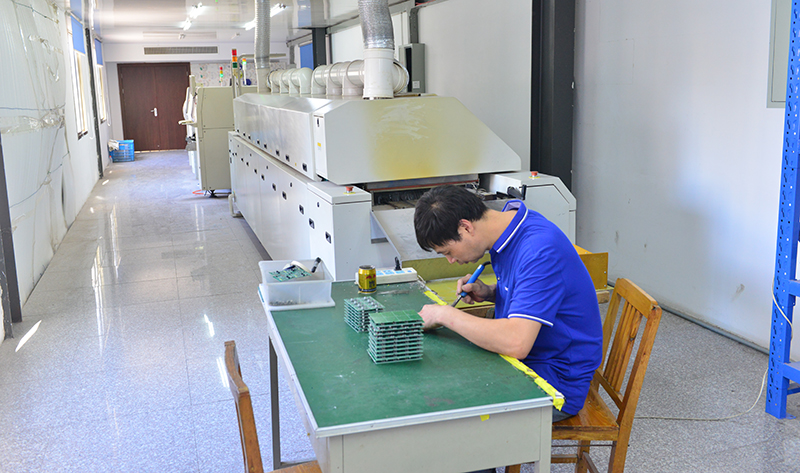

Quality Inspection

We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.

FAQs

It can handle welding rods with a diameter ranging from 1.6mm(1/16") to 4.0mm(5/32").

The manual welder can handle workpieces with a thickness ranging from 0.8 mm to 11mm.

Yes, it can be used in conjunction with a power generator, as a movable welding machine.

The MMA Welder Type SD comes with a single-phase 230V±10% V, 50/60 Hz power source. If you have any requirements on power source, please contact us.

MMA Welder Type SD is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.

MMA Welder Type SD integrates IGBT inverter technology, making the welding equipment more energy-efficient and compact in size, facilitating movable welding.
It incorporates MCU intelligent control technology, making the welder more intelligent, with stable performance and high consistency, thus improving welding quality and efficiency.

SONSCN has over 20 years of experience as a professional welding equipment manufacturer. We not only provide welding machines, but also offer related welding equipment accessories.

Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please click here to view.
